Depth Type Filter

PRODUCTS

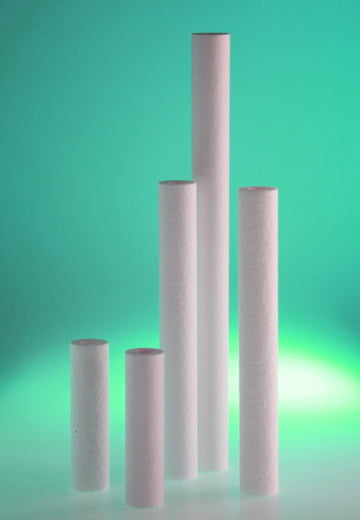

DFYP

Multi Matrix Melt-Blow Filter

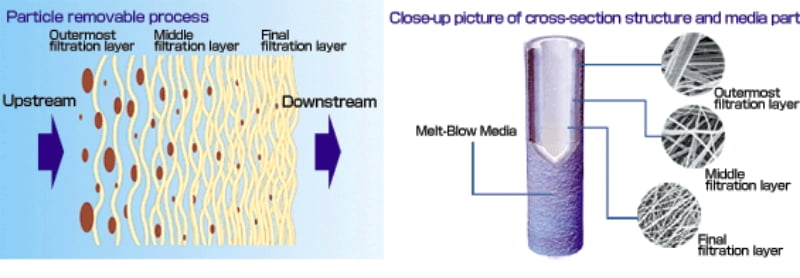

The innovative Melt blow technology New Depth type filters. Consisting of virgin polypropylene Melt blow Microfiber, DFYP provides a high porosity rate in spite of their density gradients. Therefore, it has long life with very high efficiency and low delta pressure. Furthermore, it assures high degree and sealted very smooth face end.

Materials of Composition	Filter media / Melt blow polypropylene microfiber
Filtration Precision (Nominal microns)	0.5, 1, 3, 5, 10, 20, 25, 30, 50, 75, 100
Dimensions	Outside diameter: 65mm, Inside diameter: 30mm Length: 10, 20, 30, 40 (inch) / 250, 500, 750, 1000 (mm)
Maximum Differential Pressure	0.39MPa
Maximum Operating Temperature	80°C
Applicable Fluids	Pure water, R/O pretreated water, Plating solutions, Process water, Drinking water, Chemicals, etc
Model Code

Swipe to see the table

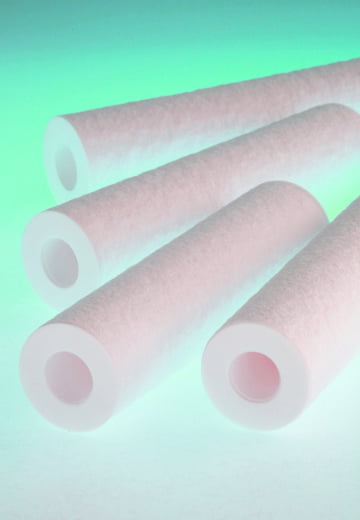

DFDA

Multi Matrix Absolute Melt-Blow Filter
DFDA is absolute type of DFYP.

Materials of Composition	Filter media / Melt blow polypropylene microfiber
Filtration Precision (Nominal microns)	1,3,5,10,15,30,50,75,100
Dimensions	Outside diameter: 65mm, Inside diameter: 30mm Length: 10, 20, 30, 40 (inch) / 250, 500, 750, 1000 (mm)
Maximum Differential Pressure	0.39MPa
Maximum Operating Temperature	80°C
Applicable Fluids	Pure water, R/O pretreated water, Plating solutions, Process water, Drinking water, Chemicals, etc
Model Code

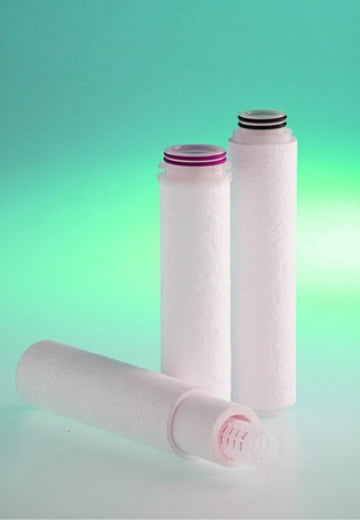

DFAH

Hybrid Cartridge Filter
DFAH is an innovative cartridge filter. Our experience enables us to combine Depth with Pleated filters. DFAH is suitable for filtering fluids with pectized particles and hard particles.

Materials of Composition	Filter media / Surface layer: Depth filter, Melt blow polypropylene Inner layer: Pleated filter, Polypropylene
Filtration Precision (Nominal microns)	0.6,1.2,2.5
Dimensions	Outside diameter: 65mm, Inside diameter: 30mm Length: 10, 20, 30, 40 (inch) / 250, 500, 750, 1000 (mm)
Maximum Differential Pressure	0.39MPa
Maximum Operating Temperature	80°C
Applicable Fluids	Color resist, CMP, Chemicals, Cosmetics, Pure water, Process water, Drinking water, etc
Model Code

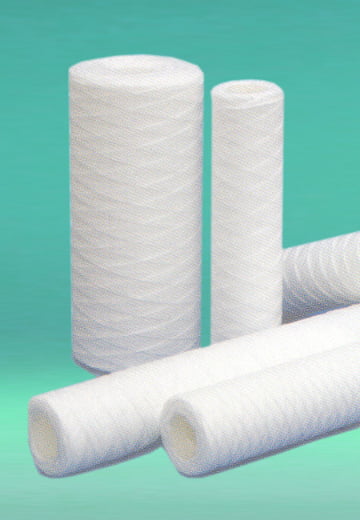

DFDW

Wound Type Filter
Being accepted for an extended variety of applications, this wound Model has been in regular traditional uses. It is diamond type with density gradient. Kinds of filters available are made of polypropylene or cotton, and non-bleached cotton type has also been introduced.

Materials of Composition	Filter media / P: Polypropylene C: Cotton CN: Cotton non-bleached Center core / P: Polypropylene S: SUS304
Filtration Precision (Nominal microns)	0.5,1,3,5,10,25,50,100,150,200,XL
Dimensions	Outside diameter: Standard - 60mm Big (B) - 115mm Length: 10, 20, 30 (inch) / 250, 500, 750 (mm)
Maximum Differential Pressure	P: 0.39MPa C: 0.49MPa
Maximum Operating Temperature	P: 60°C C: 100°C
Applicable Fluids	Water, Drinking water, Waste water, Foodstuff Chemicals, Air, etc
Model Code

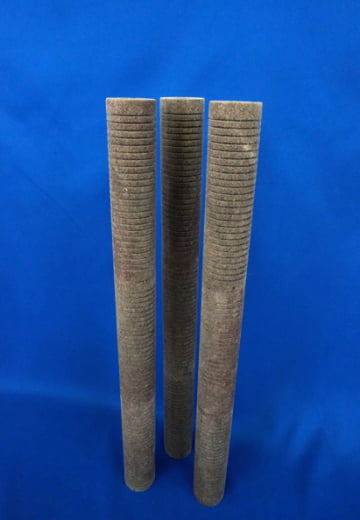

DFRB

DFRB filter is a resin- bonded depth type filter cartridge suitable for a wide range of applications. DFRB utilizes phenolic impregnated acrylic and polyester fibers for high efficiency and long life. It is suitable for high viscosity fluid. Suitable for DFRB include adhesives, coatings, inks, and many more applications for both aqueous and solvent based fluids.

Materials of Composition	Acrylic and polyester fibers,phenolic resin bonded
Filtration Precision (Nominal microns)	2,5,10,25,50,75,100,150µm nominal
Dimensions	O.D.:65mm I.D.:26.9mm Length: 248~1015mm
Maximum Operating Temperature	121℃,149℃ (Hifg Temp)
Applicable Fluids	Boiler condensate, industrial water, paint, ink, chemical solution, resin solution, oil for industrial use, etc.
