PRODUCTS

For Food and Medical

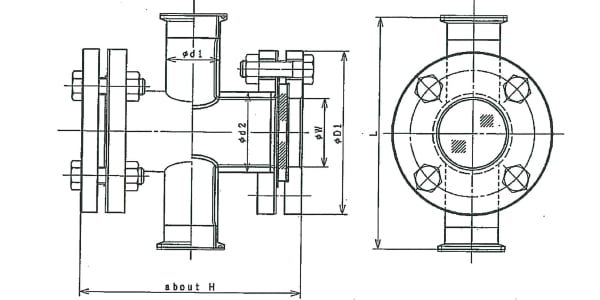

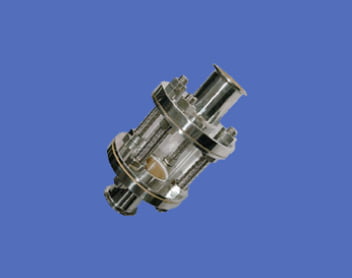

TYPE S5L

S8
Specification

Max. Operating Pressure: 0.3MPaG
Max. Operating Temperature: 100°C
For extreme and special operating conditions, please contact us.

Option

Glass Protection Plate・Protection Screen.

TYPE S5L

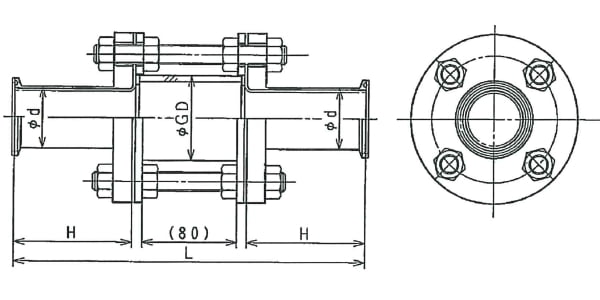

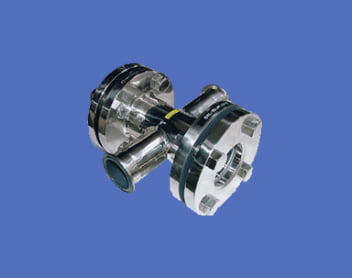

TYPE CYL

TYPE CYL
Specification

Max. Operating Pressure: 0.98MPaG
Max. Operating Temperature: 100°C

Option

Glass Protection Plate・Protection Screen
Glass Protection Sheet “Security Film”

TYPE CYL

MATERIAL

DesignMaterial
WeldedCarbon Steel: SGP, STPG370, etc
Stainless Steel: SUS304, SUS304L, SUS316, SUS316L
Lining: Glass Lining, Rubber Lining, Teflon Lining

WHERE TO PLACE

  • Body Material: Stainless + Internal Teflon Lining
  • Ferrule + Teflon Lining
  • Food Sanitation Law Compliant
  • Gaskets: Teflon
  • Surface Finish: Buffing
  • Oil-Free & Water-Free Treatment

FAQ

Q1. What kind of glasses is available?

Answer.

  1. Tempered Glass: Max. Temperature 80°C
  2. Pyrex Tempered Glass: Max. Temperature 260°C
  3. Silica Glass: Max. Temperature 1000°C

Tempered Glass and Pyrex Tempered Glass are mainly applied to sight glasses.
However, all of these glasses are inapplicable for alkali fluids. For alkali fluids, Teflon lined glasses or MICA are applied.
