PRODUCTS

23-TYPE~3"/80A

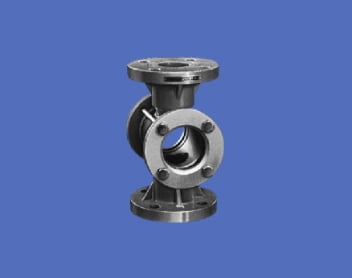

FLANGE

FLANGE

23-type sight glasses are the most typical and commonly used sight glasses. Available materials are carbon steel, stainless steel any other unique materials.

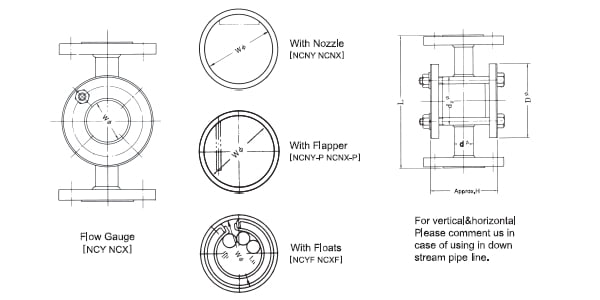

Sample Drawing

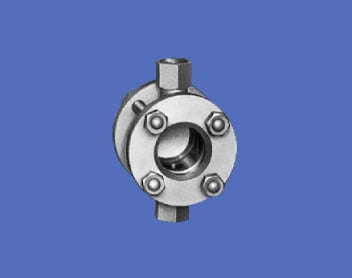

SCREWED

SCREWED

23-type screwed sight glasses are suitable are suitable for middle pressure lines. Available materials are carbon steel and stainless steel.
Socket weld connection type is also available.

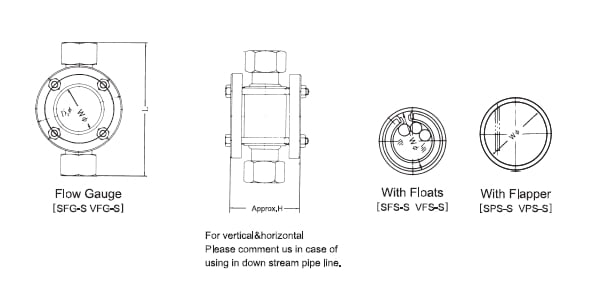

Sample Drawing

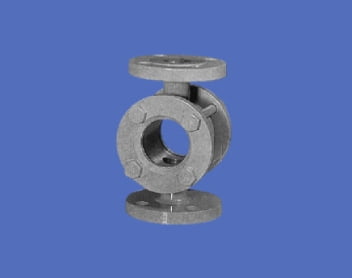

PVC

PVC

23-type sight glasses made of PVC or HT-PVC are available for chemicals.

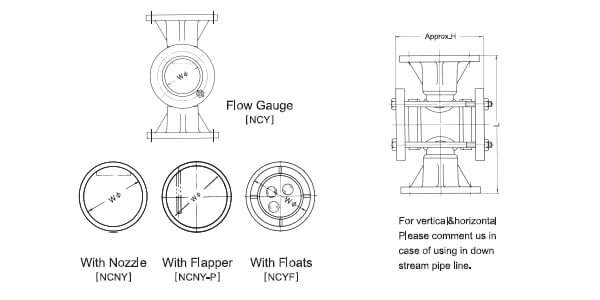

Sample Drawing

MATERIAL

Available Materials. We can manufacture in a wide variety of special materials. If you need sight glasses in other unique materials, please contact us.

End ConnectionDesignInternal Structure/
Function
Material
FlangedWeldedFlow gauge
Float
Flapper
Nozzle
Lantern
Jacket
Carbon Steel (SGP, STPG370, etc)
Stainless Steel (304, 304L, 316, 316L)
Lining (Glass, Rubber, Teflon Coating)
Special Metals (LF-2, Titanium, Hastelloy, etc)
MachinedFlow gauge
Float
Flapper
Forged (S25C, A105, SF440A, SUS)
Special Metals (Titanium, Hastelloy, etc)
ScrewedWeldedFlow gauge
Float
Flapper
Nozzle
Carbon Steel (SGP, STPG370, etc)
Stainless Steel (304, 304L, 316, 316L)
Special Metals (LF-2, Titanium, Hastelloy, etc)
MachinedFlow gauge
Float
Flapper
Forged (S25C, A105, SF440A, SUS)
Special Metals (Titanium, Hastelloy, etc)
Socket WeldWeldedFlow gauge
Float
Flapper
Carbon Steel (SGP, STPG370, etc)
Stainless Steel (304, 304L, 316, 316L)
Special Metals (LF-2, Titanium, Hastelloy, etc)
MachinedForged (S25C, A105, SF440A, SUS)
Special Metals (Titanium, Hastelloy, etc)
Swipe

Swipe to see the table

WHERE TO PLACE

We have delivered sight glasses to various plants all over the world. And, thanks to our clients, our sight glasses are highly appreciated not only in Japan but also all over the world.

Our products are custom-made. With fifty year experiences, we are flexible with the demands of custom tailoring and have a capability to meet any requirements.

As a pioneer of sight glass manufacturer, we keep on developing new products and provide our clients with high-quality products.

FAQ

Q1. What are Float (Ball) and Plate (Flapper)?

Answer.

  1. Float (Ball)
    Float type sight glasses are used for observing the fluid flow of fast flow velocity by the motion of balls within ring.
  2. Plate (Flapper)
    Flapper type sight glasses are used for observing the state of fluid flow depending on opening and closing of the flapper on fluid flow.
  3. Simple Structure
Q2. What kind of glasses is available?

Answer.

  1. Tempered Glass: Max. Temperature 80°C
  2. Pyrex Tempered Glass: Max. Temperature 260°C
  3. Silica Glass: Max. Temperature 1000°C

Tempered Glass and Pyrex Tempered Glass are mainly applied to sight glasses.
However, all of these glasses are inapplicable for alkali fluids. For alkali fluids, Teflon lined glasses or MICA are applied.
