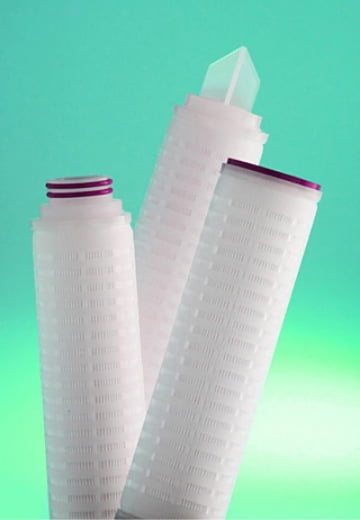

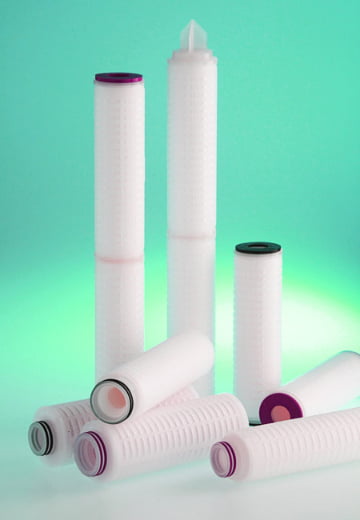

DFPP

Polypropylene Pleated Type Filter
DFPP is polypropylene made long life pleated type filter. Since it is integrally molded type using no binder and long fiber melt blown non-woven cloth, it has no dangers such as fiber separation and binder elution. Available are those with nominal indication as well as for absolute filtration. We also supply those that are appropriate for steam sterilization.

Materials of Composition	Hardware / Polypropylene / Media / Polypropylene, Center core / Polypropylene
Filtration Precision	0.2, 0.45, 1, 3, 5, 10, 30 (Nominal microns) 0.6, 1.2, 2.5, 4.5, 10 (Absolute microns)
Dimensions	Standard Type: Outside diameter: 70mm, Inside diameter: 30mm High-flow Type: Outside diameter: 80mm, Inside diameter: 30mm Standard Length: 10, 20, 30, 40 (inch) / 250, 500, 750, 1000 (mm) High-flow (80 pai Type) Length: 10inch
Maximum Differential Pressure	0.49MPa
Maximum Operating Temperature	80°C (also good for 135°C steam sterilization)
Applicable Fluids	Pure water, Chemicals, Fruit juice, Wine, Medicines, Detergents, etc
Model Code

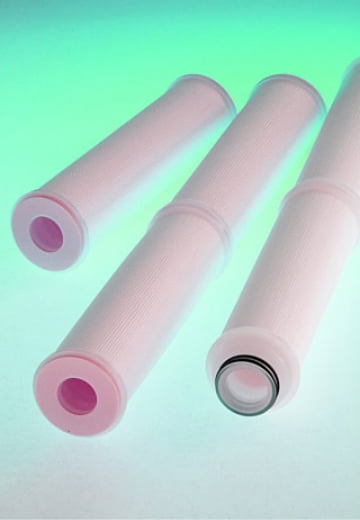

DFSF

Polypropylene Pleated Type Filter
DFSF is environment-friendly filter. With lengthen its life span, amount of filters will be discarded is only one third of that of conventional depth filter. Materials of this filter meet food standards.

Materials of Composition	Support / Polypropylene, Filter Media/ Polypropylene Center core / Polypropylene, Gasket / Polypropylene
Filtration Precision (Absolute microns)	1,3,5,10,20,30,50,100
Dimensions	Outside diameter: 70mm Inside diameter: 28mm Length: 250, 500, 750 (mm)
Maximum Differential Pressure	0.39MPa
Maximum Operating Temperature	60°C
Applicable Fluids	Pure water, Chemicals, Fruit juice, Wine, Sake, Medicines, etc
Model Code

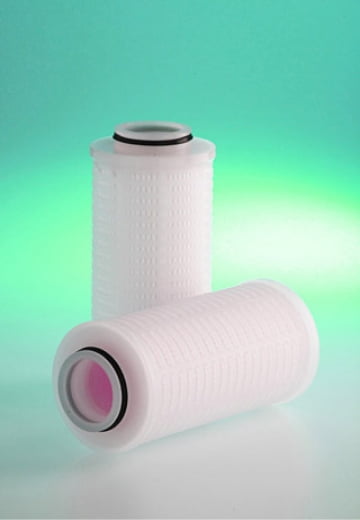

DFPU

Pleated Type Filter for High Flow
DFPU can be made from any kinds of material of medium we supply. Throughput of a set of DFPU is 200L/min. DFPU helps to save space.

Materials of Composition	Hardware / Polypropylene, Media / Any kinds of materials we supply Center core / Polypropylene
Filtration Precision (Absolute microns)	Depending on material of media
Dimensions	Outside diameter: 130mm Inside diameter: 53mm Length: 250mm
Maximum Differential Pressure	0.45MPa
Maximum Operating Temperature	50°C
Applicable Fluids	Ultra-pure water, Chemicals, Water for Foodstuff, Air-vent for tank, etc
Model Code

DFGF

Glassfiber Pleated Type Filter
They are pleated type filters with the medium composed of microglassfiber. What is more, since polypropylene is used as the support, they are made for long life and high flow rate. They are effective in filtering high molecular chemical fluids and gases.

Materials of Composition	Hardware / Polypropylene, Media / Microglassfiber Support / Polypropylene, Center core / Polypropylene
Filtration Precision (Absolute microns)	0.6,1,2,5,10
Dimensions	Outside diameter: 70mm Inside diameter: 30mm Length: 10, 20, 30 (inch) / 250, 500, 750 (mm)
Maximum Differential Pressure	0.49MPa
Maximum Operating Temperature	80°C (also good for 135°C steam sterilization)
Applicable Fluids	Water, Coating materials, Ink, High purity chemicals, Monomers and Inactivated gases
Model Code
