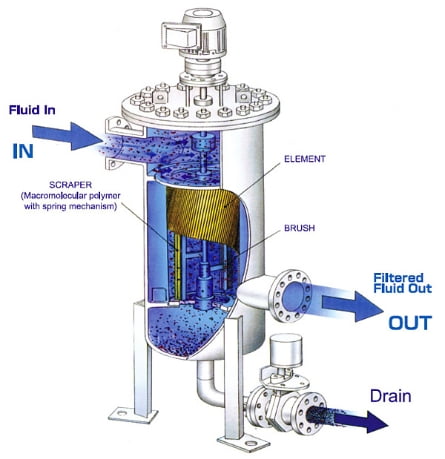

Impurities clogging the inside of the fixed -position element are removed by a brush scraper. These impurities are collected in a sludgepot and discharged through drain (N3)

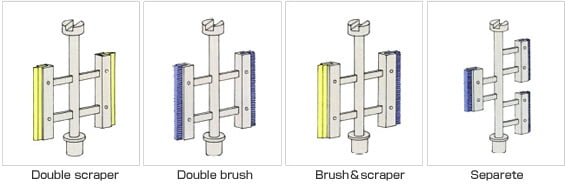

【BRUSH SCRAPER】

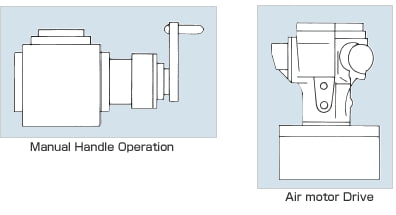

【DRIVE】
【PIPING】

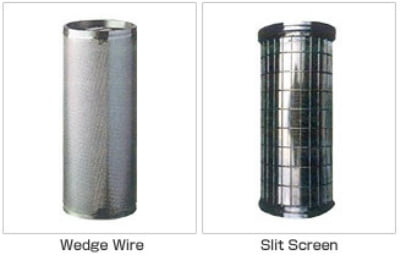

【SLASH SCREEN】

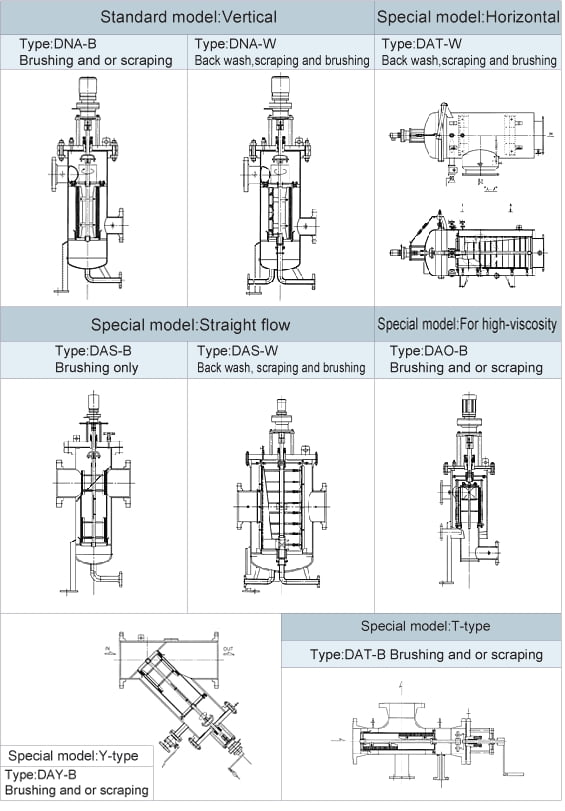

BLOWOFF BACK WASH, SCRAPING AND BRUSHING TYPE DNA-W

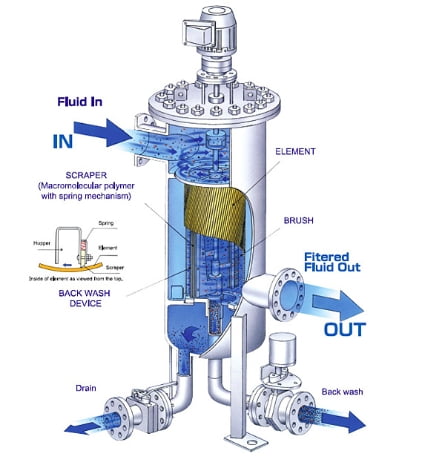

Impurities clogging the inside of the fixed -position element are removed by a brush scraper. These impurities are then sucked up by a hopper and send through the discharge pipe (N3) to the sludge pot for collection and later discharge through the discharge valve.

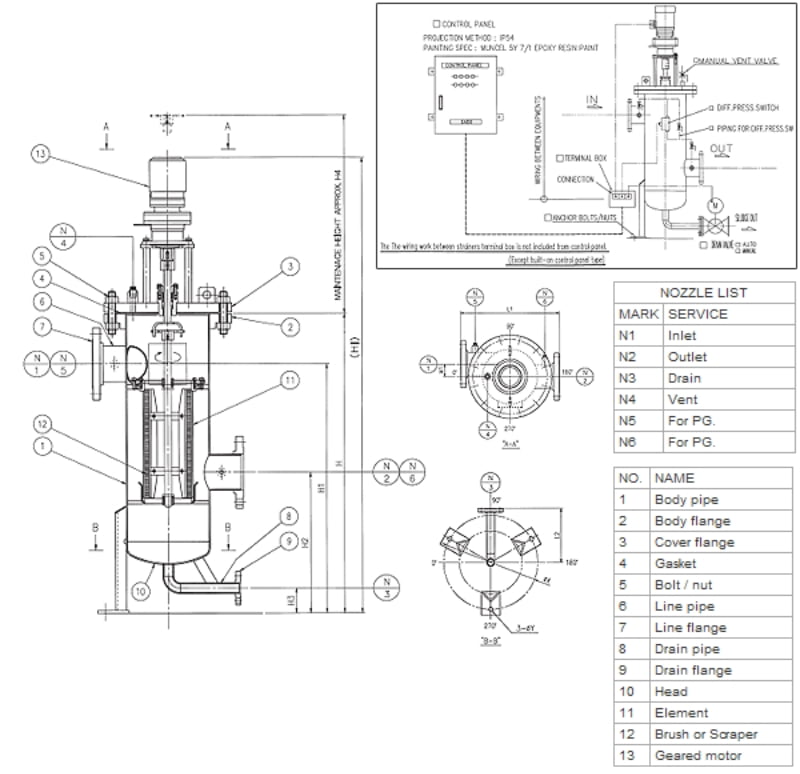

SAMPLE DRAWING
【BRUSH SCRAPER】

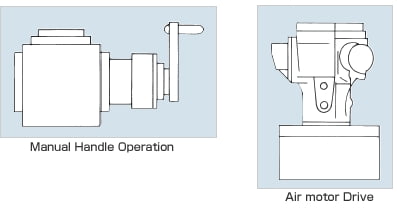

【DRIVE】
【PIPING】
【SLASH SCREEN】
Control System
Auto cleaning system is functioned by differential pressure switch operation and cleaning timer setting operation.
