PRODUCTS

Special Filter

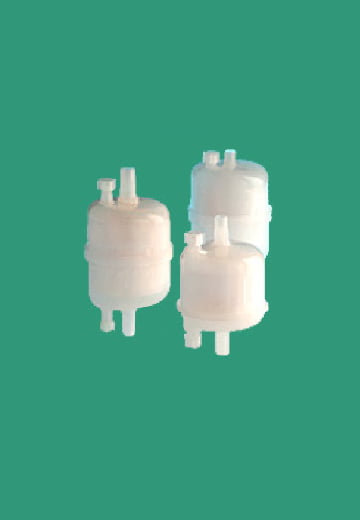

DFPC

DFPC

Hybrid Capsule Filter
DFPC is capsule type filter made from polypropylene.

Materials of CompositionHardware / Polypropylene
Media / Any kinds of materials we supply
Filtration PrecisionDepending on material of media
Connection and DimensionsOutside diameter: 72mm
Length: 139mm R1/2 (PT1/2), R1/4 (PT1/4), F (Ferrule), SW (Swagelok type)
Maximum Differential Pressure0.39MPa
Maximum Operating Temperature60°C
Applicable FluidsPure water, Photoresist, etc
Model CodeModel Code

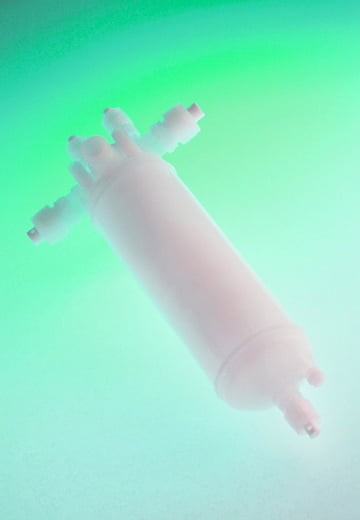

DFZC

DFZC

All Teflon Membrane Filter
DFZC is capsule type filter made from Teflon. It is suitable for semiconductor process lines.

Materials of CompositionHardware / PFA Media / PTFE
Support / PTFE Center Core / PFA
Filtration Precision
(Absolute microns)
0.03, 0.05, 0.1, 0.2, 0.45, 1
Connection and DimensionsPillar fitting: Super type, 300 series, Flaretech, Buttweld
Length: 4, 10, 20, 30 (inch)
Maximum Differential Pressure
& Operating Temperature
0.55MPa / 24°C
0.1MPa / 180°C
Applicable FluidsHigh temperature semiconducting chemicals, Chemicals, Photoresist, Concentrated acid, Ozone water, etc
Model CodeModel Code

WHERE TO PLACE

Model : DFPC
Pure water, Photoresist, etc
Model : DFZC
High temperature semiconducting chemicals, Chemicals, Photoresist, Concentrated acid, Ozone water, etc
