Metal Type Filter
DFCM / DFPM

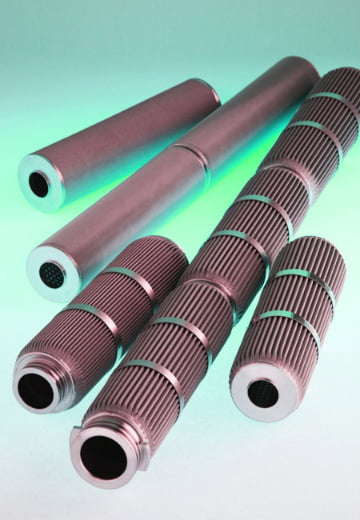

Metal Type Filter
Metal type filters with the medium made of stainless steel, and they are available in three types: sintered fiber, sintered powder and sintered mesh. In the case of sintered fiber type and sintered mesh type, we supply each one of those two types in two sub-divided types of pleated type and cylinder type, respectively.
| Materials of Composition | Media / Sintered fiber: F, Sintered powder: D, Sintered mesh: M Materials / SUS304, SUS316 |
| Filtration Precision (Nominal Rating: microns) | 2, 3, 5, 10, 7, 10, 15, 20, 25, 30, 37, 40, 44, 74, 100, 150, 177, 238, 300 |
| Dimensions | Outside diameter: 60mm Inside diameter: 28mm Length: 250, 500, 750 (mm) |
| Applicable Fluids | High temperature fluids, Steam, Esters, Polymers, Monomers, Recovery of catalysts, Hydrogen and High pressure gases |
| Model code |  |
WHERE TO PLACE
High temperature fluids, Steam, Esters, Polymers, Monomers, Recovery of catalysts, Hydrogen and High pressure gases
