Sight Flow

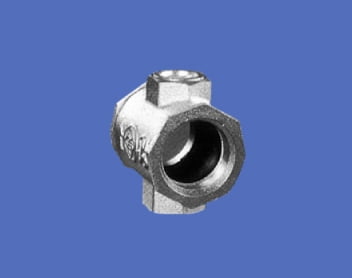

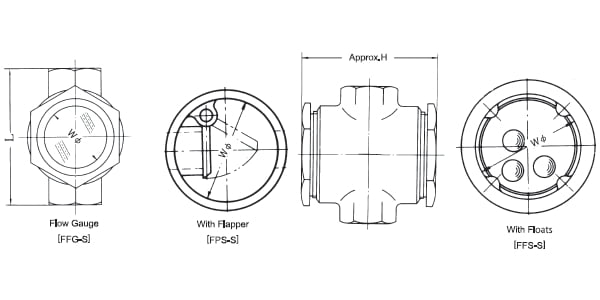

SCREWED

Machined Sight Glass provides superior cost performance and quick delivery.

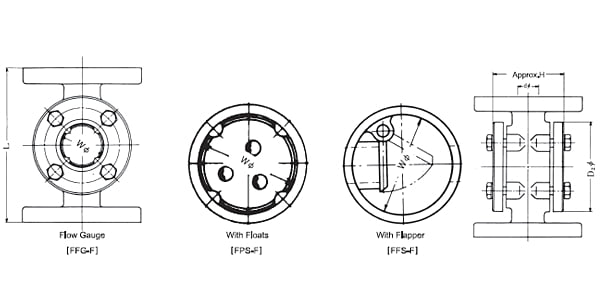

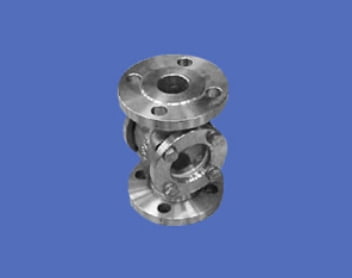

FLANGED

MATERIAL

End Connection	Design	Internal Structure/ Function	Material
Flanged	Casting	Flow gauge Float Flapper	Casting Material (FC200)
Screwed	Casting	Flow gauge Float Flapper	Casting Material (FC200, BC6)

Swipe to see the table

WHERE TO PLACE

We have delivered sight glasses to various plants all over the world. And, thanks to our clients, our sight glasses are highly appreciated not only in Japan but also all over the world.

Our products are custom-made. With fifty year experiences, we are flexible with the demands of custom tailoring and have a capability to meet any requirements.

As a pioneer of sight glass manufacturer, we keep on developing new products and provide our clients with high-quality products.

FAQ

Q1. What kind of glasses is available?

Answer.

Tempered Glass: Max. Temperature 80°C
Pyrex Tempered Glass: Max. Temperature 260°C
Silica Glass: Max. Temperature 1000°C

Tempered Glass and Pyrex Tempered Glass are mainly applied to sight glasses.
However, all of these glasses are inapplicable for alkali fluids. For alkali fluids, Teflon lined glasses or MICA are applied.
